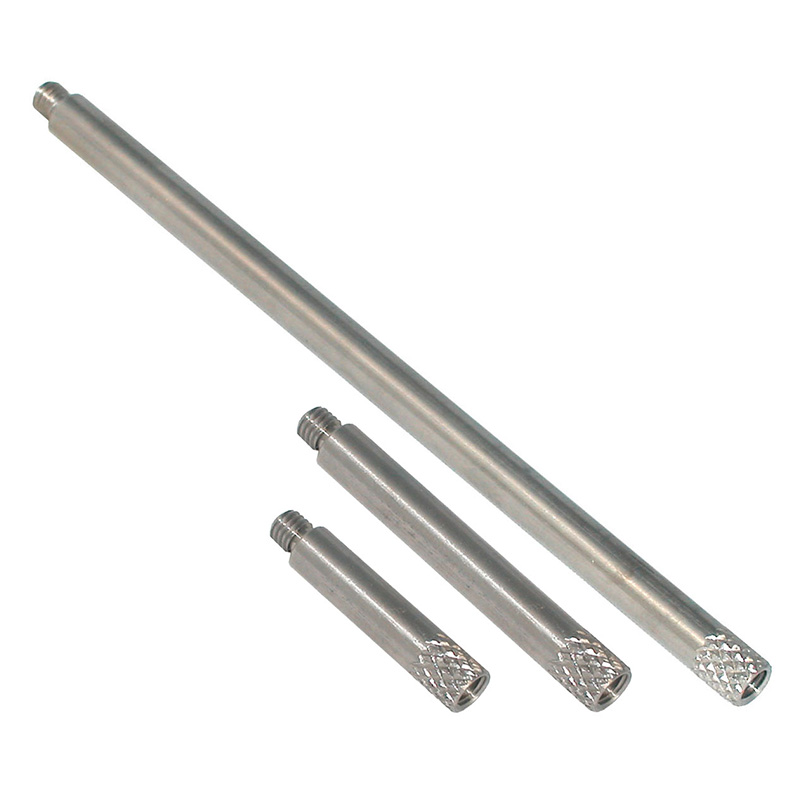

Extension Rods
G1024, G1024-1, G1024-2, G1031, G1031-1, G1031-2
Extension Rods
G1024, G1024-1, G1024-2, G1031, G1031-1, G1031-2
For use between force gauges, sensors, grips, and attachments.
Not recommended for compression applications because misalignment could result in buckling and damage to the force sensor.
Specifications
| Model | Capacity lbF [N] |
Weight lb [kg] |
HS Code | ECCN | Country of Origin |
|---|---|---|---|---|---|
| G1024 | 200 [1,000] | 0.05 [0.023] | 9024800000 | EAR99 | USA |
| G1024-1 | 200 [1,000] | 0.02 [0.009] | |||
| G1024-2 | 200 [1,000] | 0.01 [0.005] | |||
| G1031 | 500 [2,500] | 0.25 [0.113] | |||
| G1031-1 | 500 [2,500] | 0.10 [0.045] | |||
| G1031-2 | 500 [2,500] | 0.05 [0.023] |

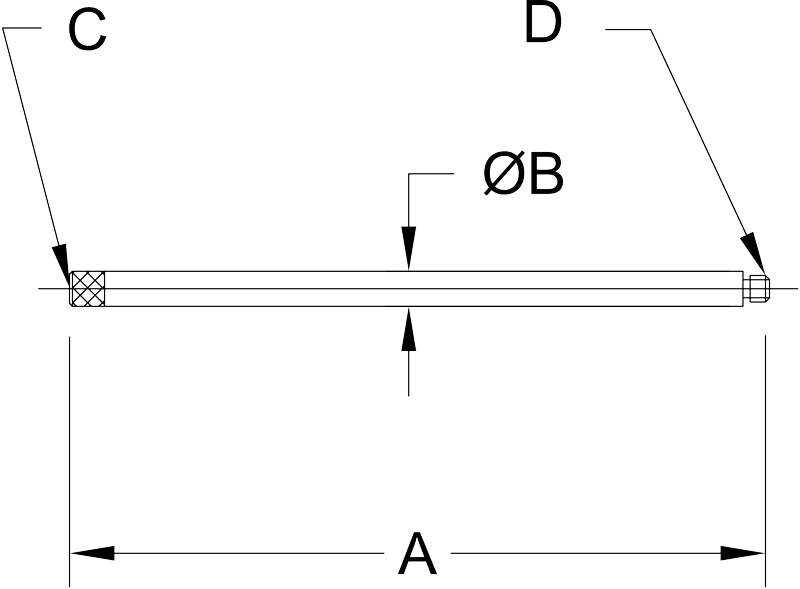

Dimensions
IN [MM]
| Model | A | ØB | C | D |
|---|---|---|---|---|
| G1024 | 5.0 [127.0] | 0.25 [6.4] | #10-32F | #10-32M |
| G1024-1 | 2.0 [50.8] | |||
| G1024-2 | 1.0 [25.4] | |||
| G1031 | 5.0 [127.0] | 0.50 [12.7] | 5/16-18F | 5/16-18M |
| G1031-1 | 2.0 [50.8] | |||
| G1031-2 | 1.0 [25.4] |
